High-Precision Distance and Proximity Sensor with Enhanced Performance

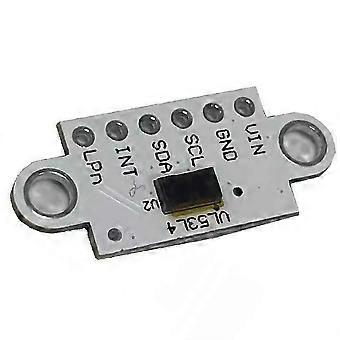

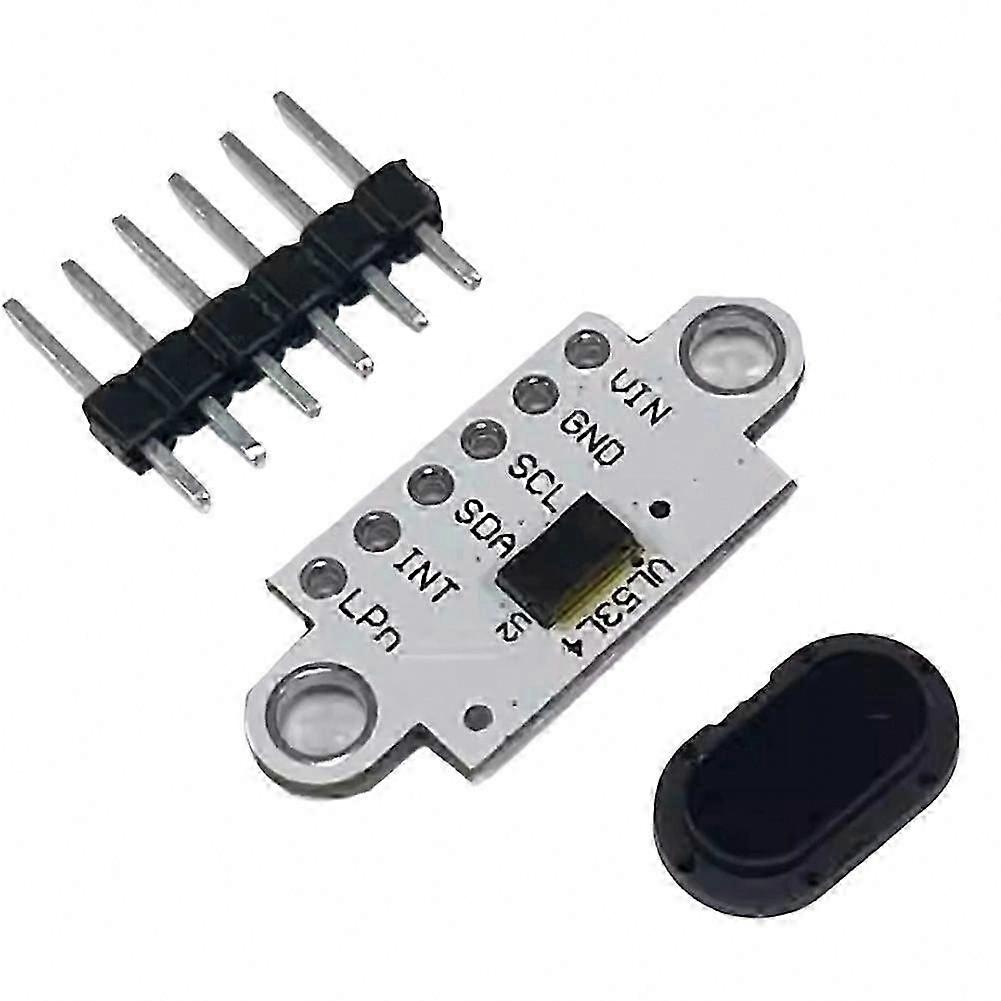

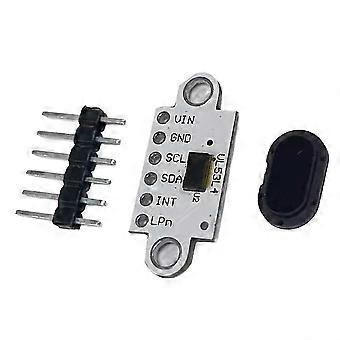

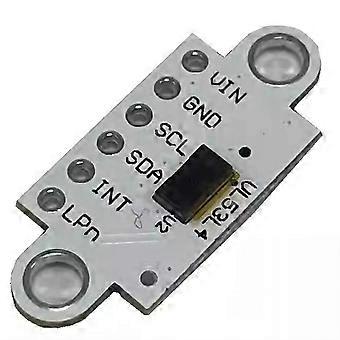

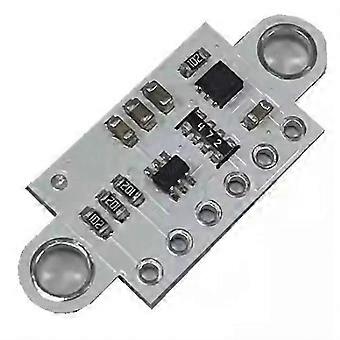

Designed specifically for close and short-distance measurements, the VL53L4CD delivers highly accurate distance measurements, with a range from 1 millimeter up to 1300 millimeters. The sensor features an 18° field of view, improved performance in ambient light, and a ranging speed of up to 100 Hz. Its autonomous mode and programmable ranging settings enable very low power consumption, making it ideal for battery-powered devices. Embedded on-chip processing reduces design complexity and lowers bill-of-materials costs, allowing use of lower-power, more cost-effective microcontrollers. Like all ST FlightSense time-of-flight (ToF) sensors, the VL53L4CD provides absolute distance measurements independent of target color and reflectivity. Features: - High-precision proximity and distance measurement - High-performance proximity sensing - Full field-of-view (FoV) range from 0 to 1300 mm - Short-distance linearity down to 1 mm - 18° field of view - Autonomous low-power mode with programmable interrupt width for host wake-up - Ranging frequency up to 100 Hz - Fully integrated micro module - 940 nm invisible VCSEL emitter with analog driver - Low-power microcontroller running advanced digital firmware - Dimensions: 4.4 × 2.4 × 1 mm - Pin-to-pin compatible with VL53L0X, VL53L1X, VL53L1CB, VL53L3CX, and VL53L4CX - Easy integration - Reflow-compatible component - Single 2.8 V power supply - Can be placed behind cover glass - I²C interface (up to 1 MHz) - Comprehensive C software drivers (Linux-compatible) for plug-and-play distance measurement - Embedded processing with minimal host memory usage Package Includes: - 1 × VL53L4CD sensor module Note: Actual product appearance may vary slightly due to lighting conditions and display settings.
