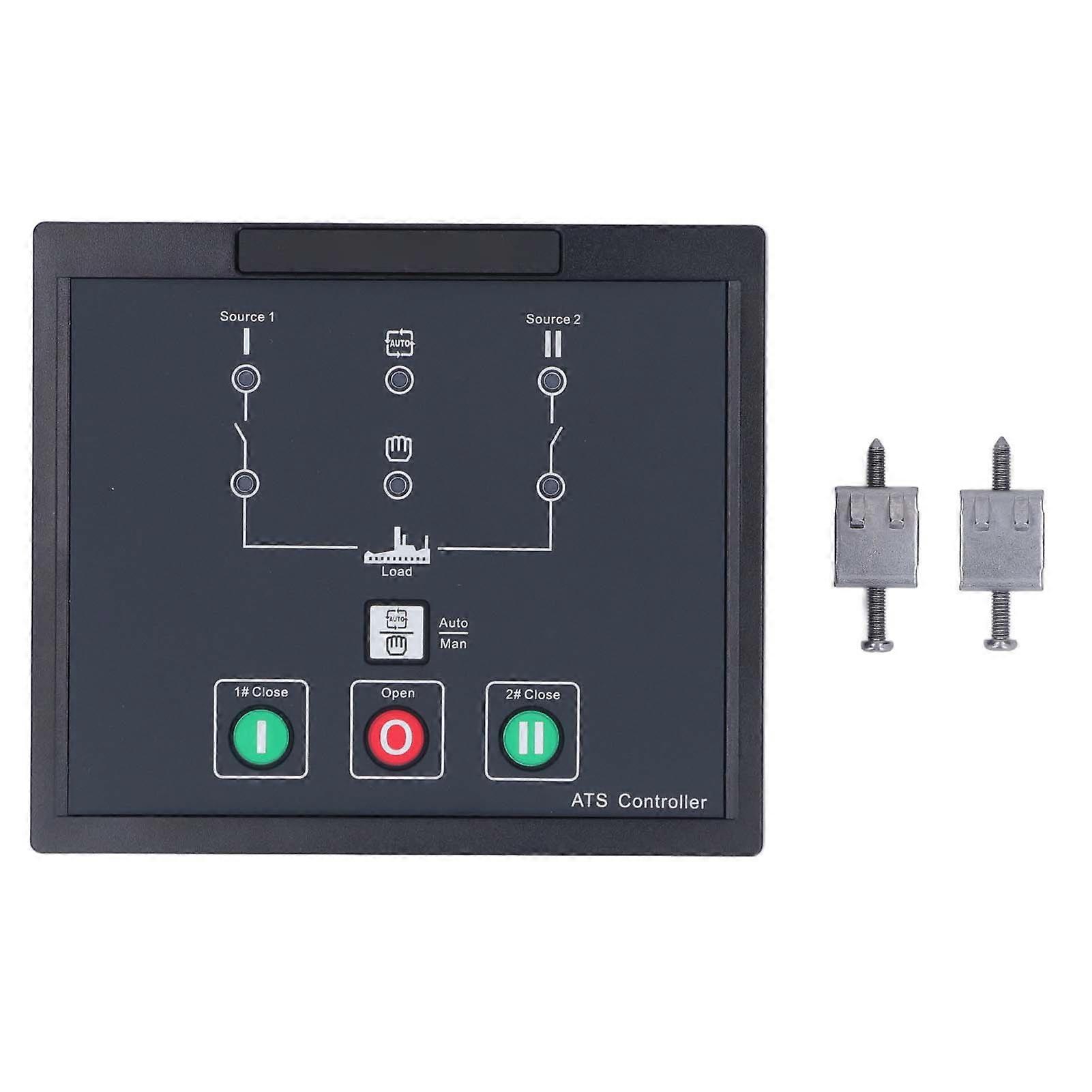

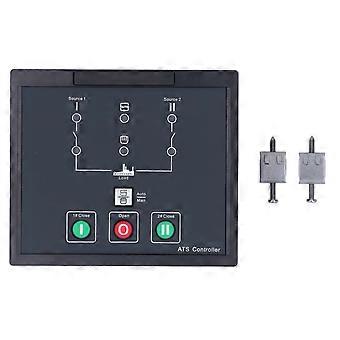

1、[Dual Power Switching] This generator control panel can automatically switch between two power sources, ensuring responsive power transfer. 2、[Backlit LCD Display] The controller features LCD display with backlit, allowing operators to easily read parameters even in shaded environments. 3、[Data Display] The control module displays faults, operating statuses, and relevant measurement data on the panel LCD, providing real time monitoring. 4、[Multi Functional] The genset controller accurately measures and outputs generator voltage, current, oil pressure, coolant temperature, frequency, DC power supply voltage, and more. 5、[Waterproof and Reliable] When waterproof rubber sealing ring installed between the controller and control panel, this controller could achieves IP65 grade, ensuring safety and reliability. Item Type: Generator Controller Material: ABS Overall Power Consumption: <3W (standby mode: <1W) Three Phase Four Wire: AC170-277V (ph N) Single phase two wire: AC170-277V (ph N) Two phase and three wire: AC170-277V (ph N) Three phase and three wire: AC170-277V (ph ph)) (customized accessories required) Rated Frequency: 50 60Hz 1# Closing Relay Output Port: 10A AC250V passive output 2# Closing Relay Output Port: 10A AC250V passive output Opening Relay Output Port: 10A AC250V passive output Programmable 1 Relay Output Port: 16A AC250V passive output Programmable 2 Relay Output Port: 16A AC250V passive output Generator Set Start Relay: 7A AC250V passive output 1# Closing Input Port: Effective when connected to C0M2 2# Closing Input Port: Effective when connected to C0M2 Forced Disconnection Input Port: Effective when connected to C0M2 Communication Method: LNK interface Working Temperature: -25℃ to +70℃ Working Humidity: 20 to 93% RH Storage Temperature: -30℃ to +80℃ Protection Grade: IP65: When a waterproof rubber ring is installed between the controller and the control screen 1 x Generator Controller 2 x Accessories 1 x User Manual
